MESR-100 ESR Meter – Digital Capacitor Tester with 100kHz Sine Wave, 4-Digit High-Resolution Display, In-Circuit Testing
MESR-100 ESR Meter – Digital Capacitor Tester with 100kHz Sine Wave, 4-Digit High-Resolution Display, In-Circuit Testing
Couldn't load pickup availability
Accurate ESR Measurement for Capacitor Testing

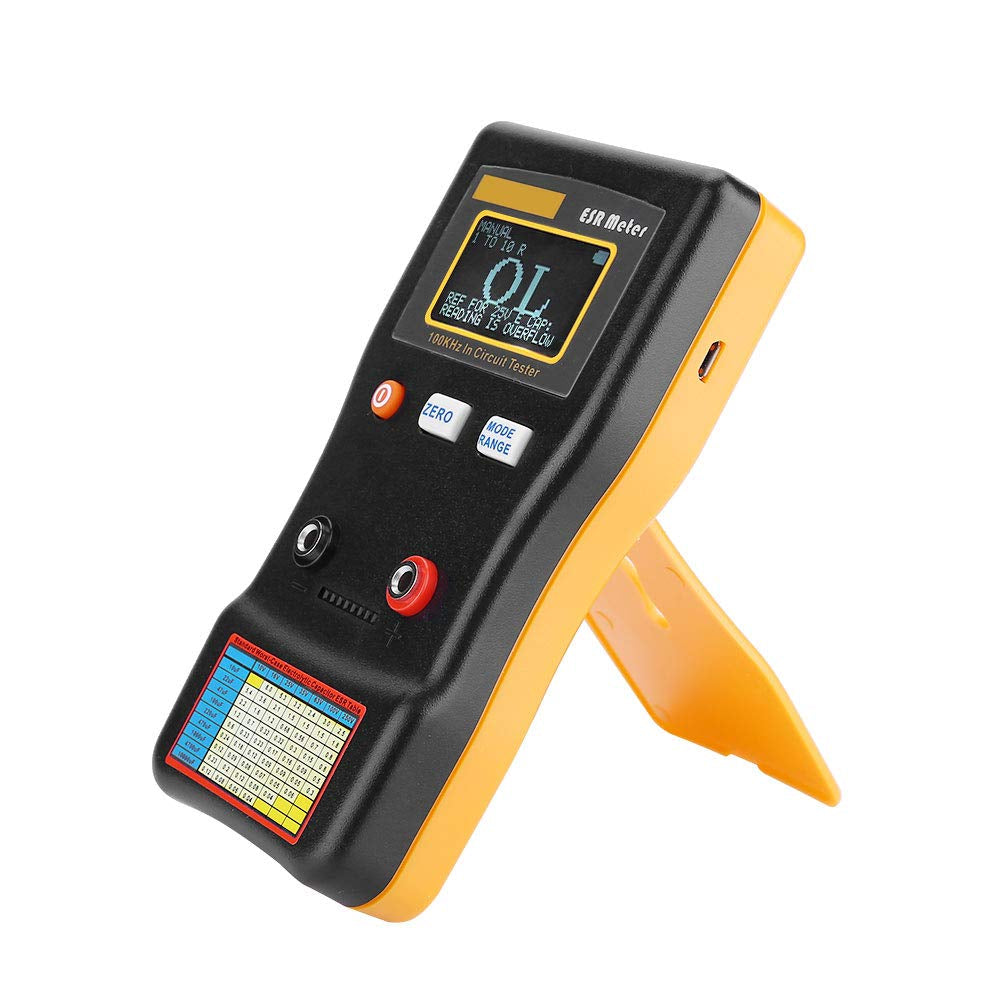

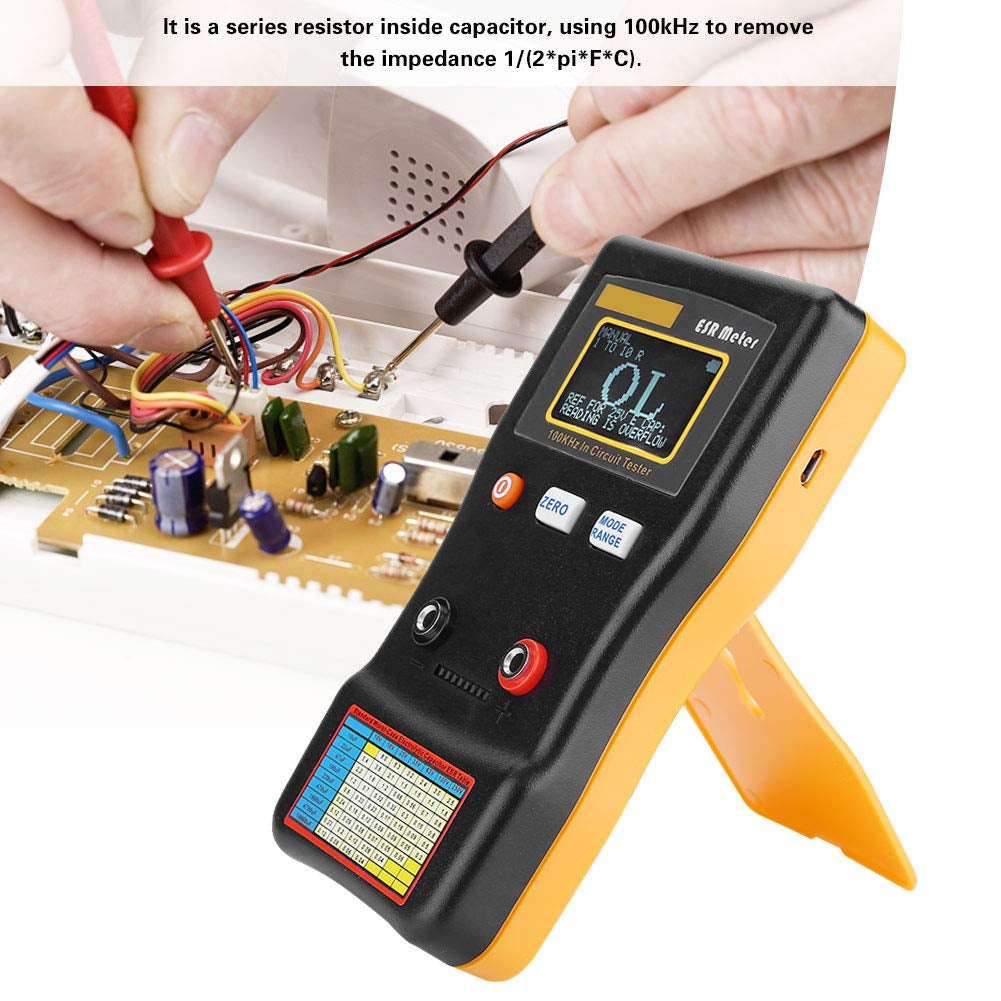

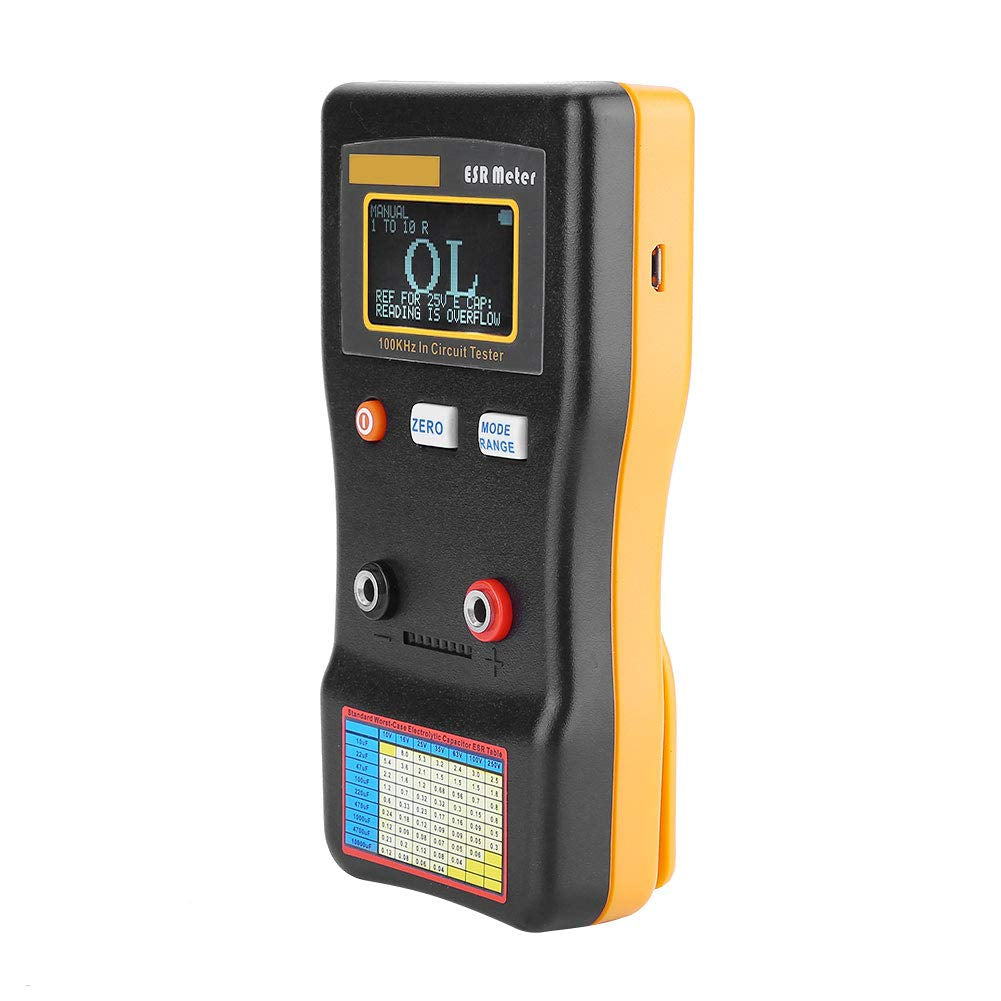

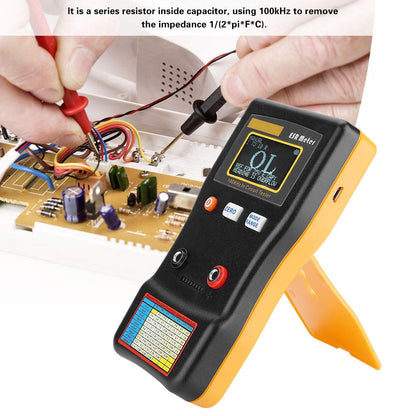

The MESR-100 ESR Meter is a specialized tool for identifying faulty or degraded capacitors with up to 1% accuracy. Using a true 100kHz sine wave test signal, it minimizes capacitive impedance (1/2πfC) to accurately measure the true series resistance (ESR) of capacitors—even in-circuit.
Key Features:
-

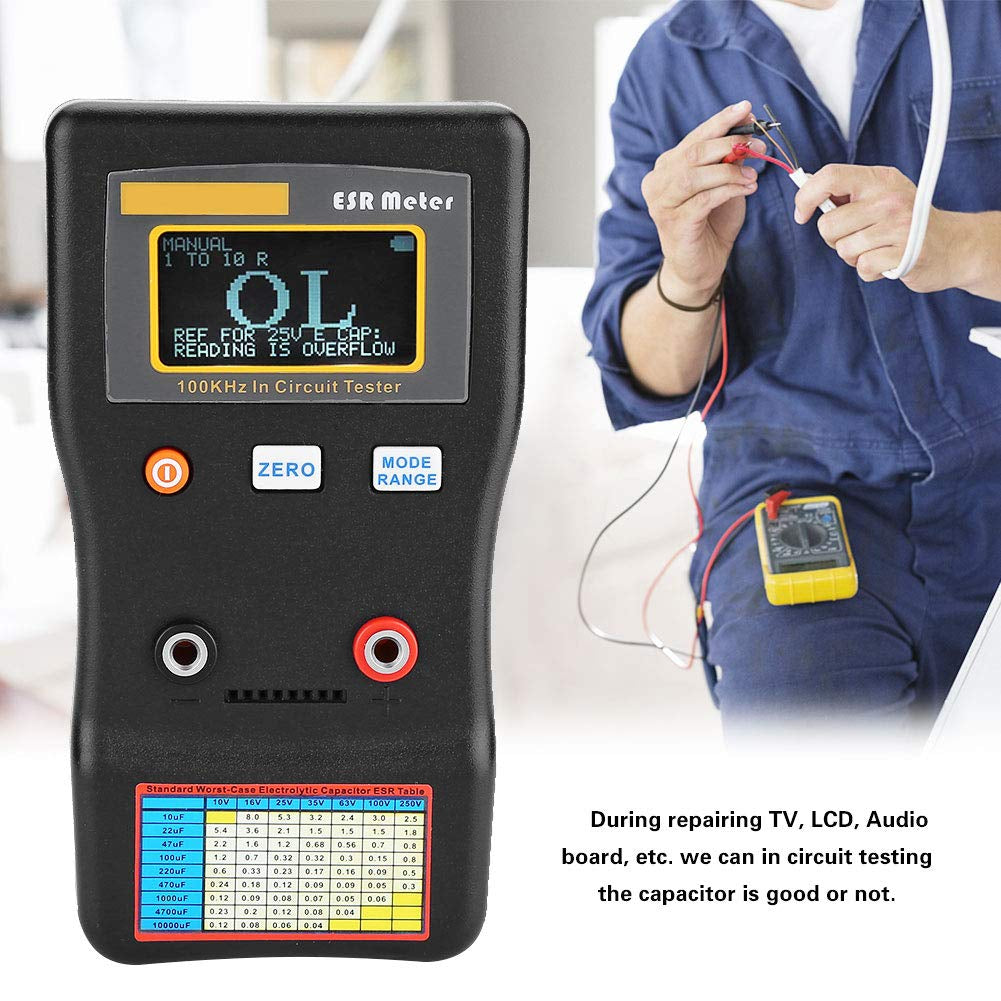

✅ In-Circuit Testing – Applies less than 15mV DC to allow safe capacitor testing directly on TV, LCD, and audio boards.
-

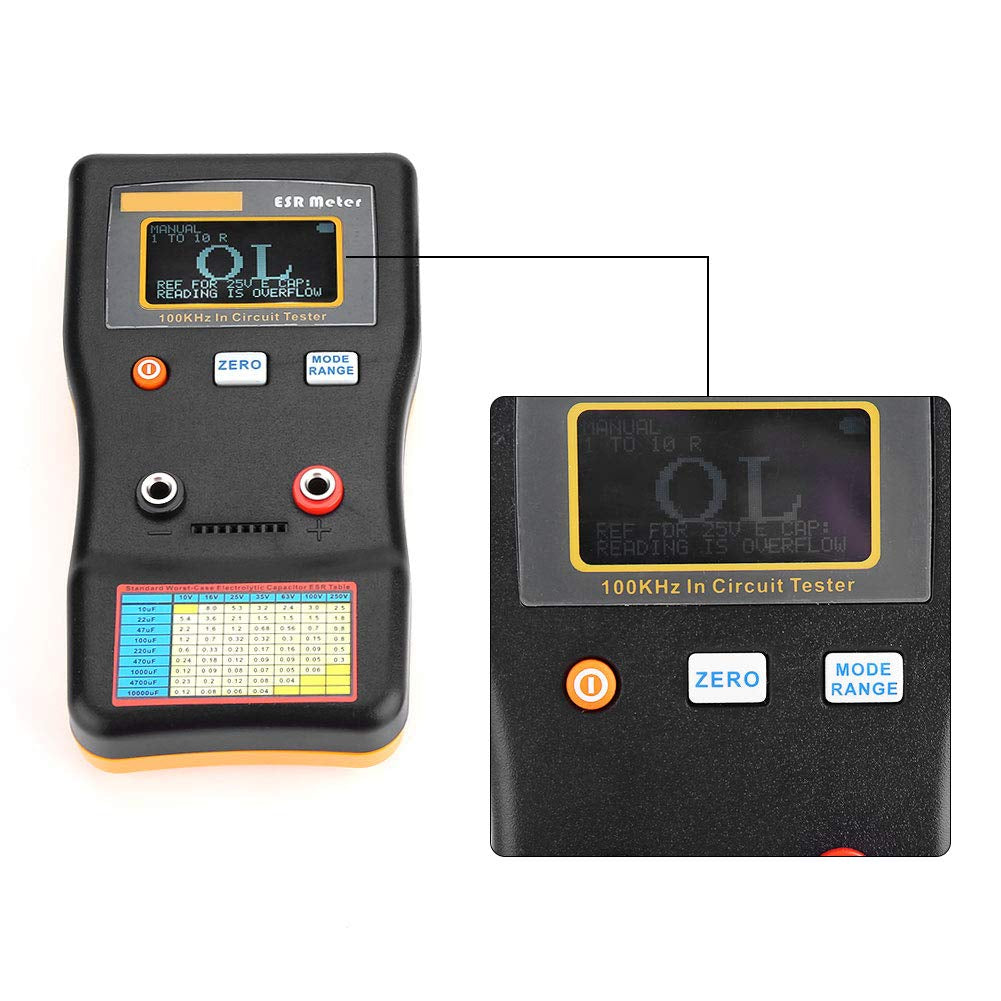

✅ High Precision & Resolution – Offers a 4-digit display with resolution down to 0.001Ω, ideal for detailed diagnostics.
-
✅ Dual Power Options – Operates via 2x AA batteries or 5V USB power (batteries not included).
-

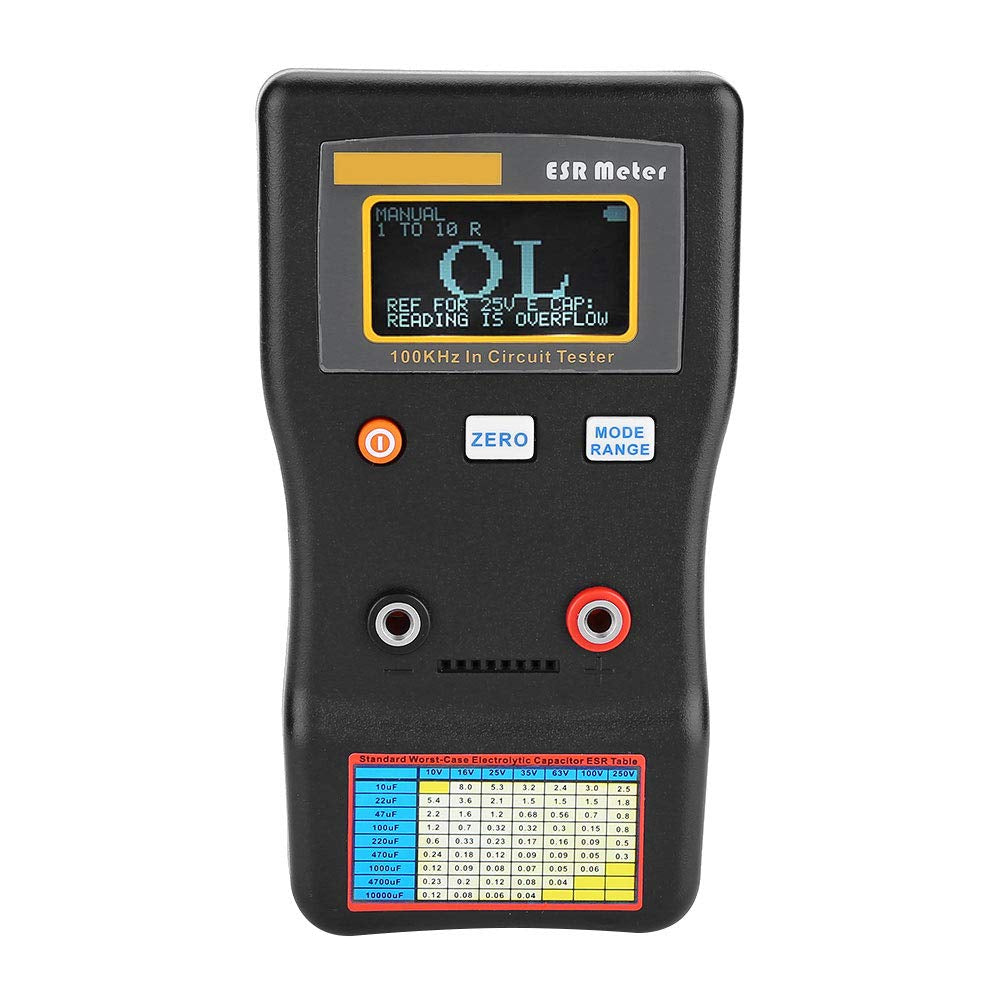

✅ ESR Reference Table – Built-in printed ESR table for quick condition checks and repair efficiency.
-
✅ Manual Reset Function – Includes a clear button to eliminate test lead interference for more accurate readings.
Specifications:
-
Model: MESR-100
-
Accuracy: Up to 1%
-
Test Frequency: 100kHz true sine wave
-
Measuring Voltage: <40mV RMS
-
Clamping Voltage: 0.15V
-
Measurement Range: >1μF recommended
-
Display: 4-digit (up to 0.001Ω resolution)
-
Power Supply: 2× AA batteries or 5V USB (batteries not included)
-
Battery Life: >80 hours
-
Dimensions: 14.4 × 8.1 × 3.1 cm (5.7 × 3.2 × 1.2 in)
-
Weight: 219g (7.7 oz)
Package Includes:
-

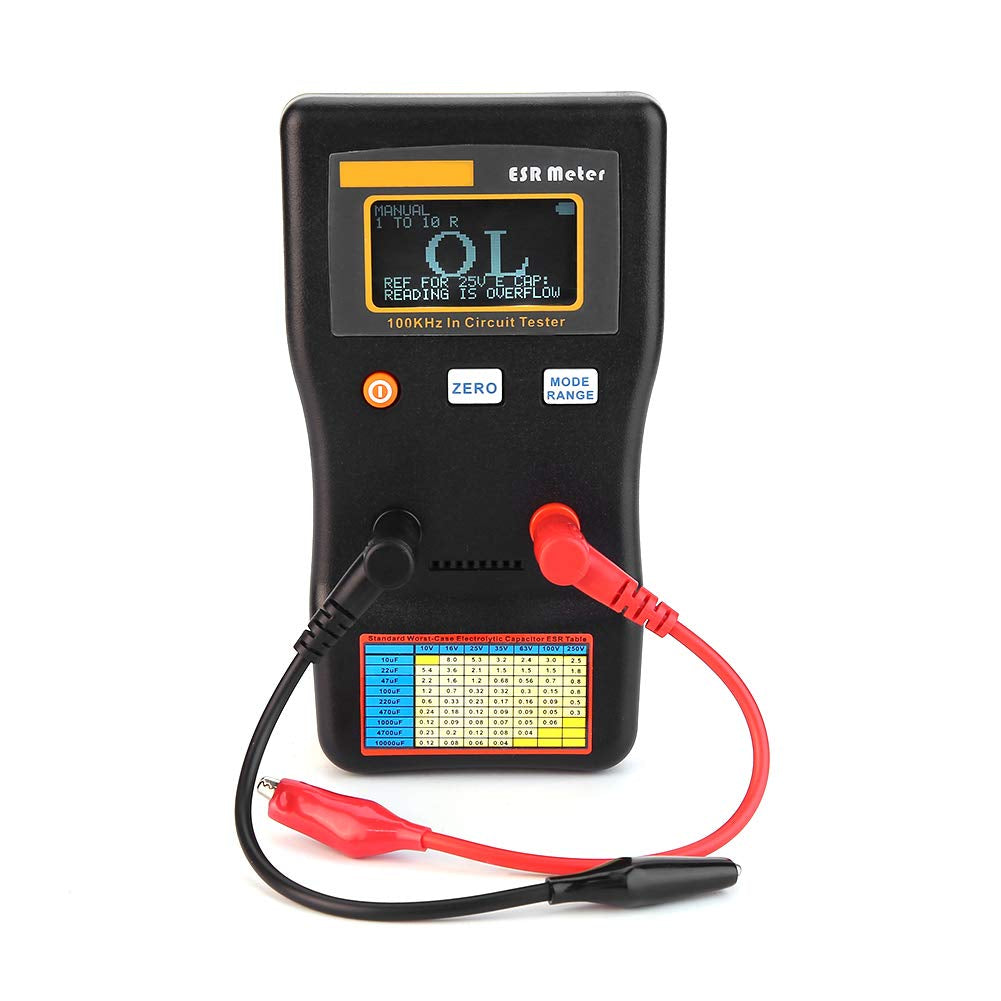

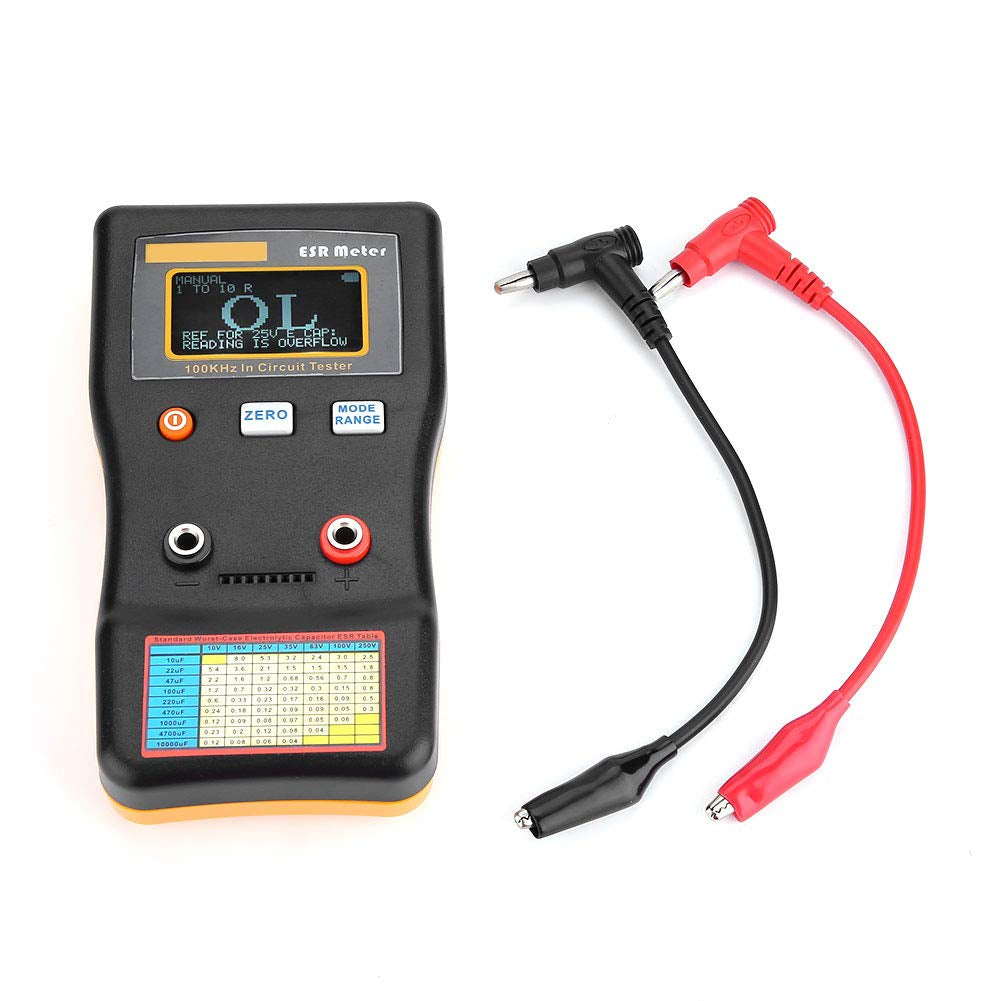

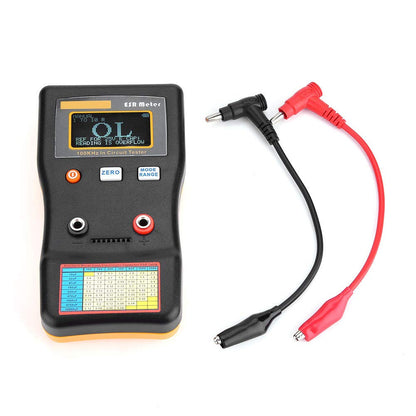

1 × MESR-100 ESR Meter
-
2 × Test Clips
-
1 × User Manual
